Skid - mounted air separation unit

Skid - mounted air separation unit

A skid-mounted air separation unit (ASU) is a modular system designed to separate atmospheric air into its primary components—oxygen, nitrogen, and argon—using cryogenic distillation or non-cryogenic technologies like pressure swing adsorption (PSA) or membrane separation. Unlike traditional ASUs, which are built on-site, skid-mounted units are pre-engineered, factory-assembled, and shipped as a single integrated package, enabling rapid deployment and scalability. Here’s a detailed overview:

Key Components & Design

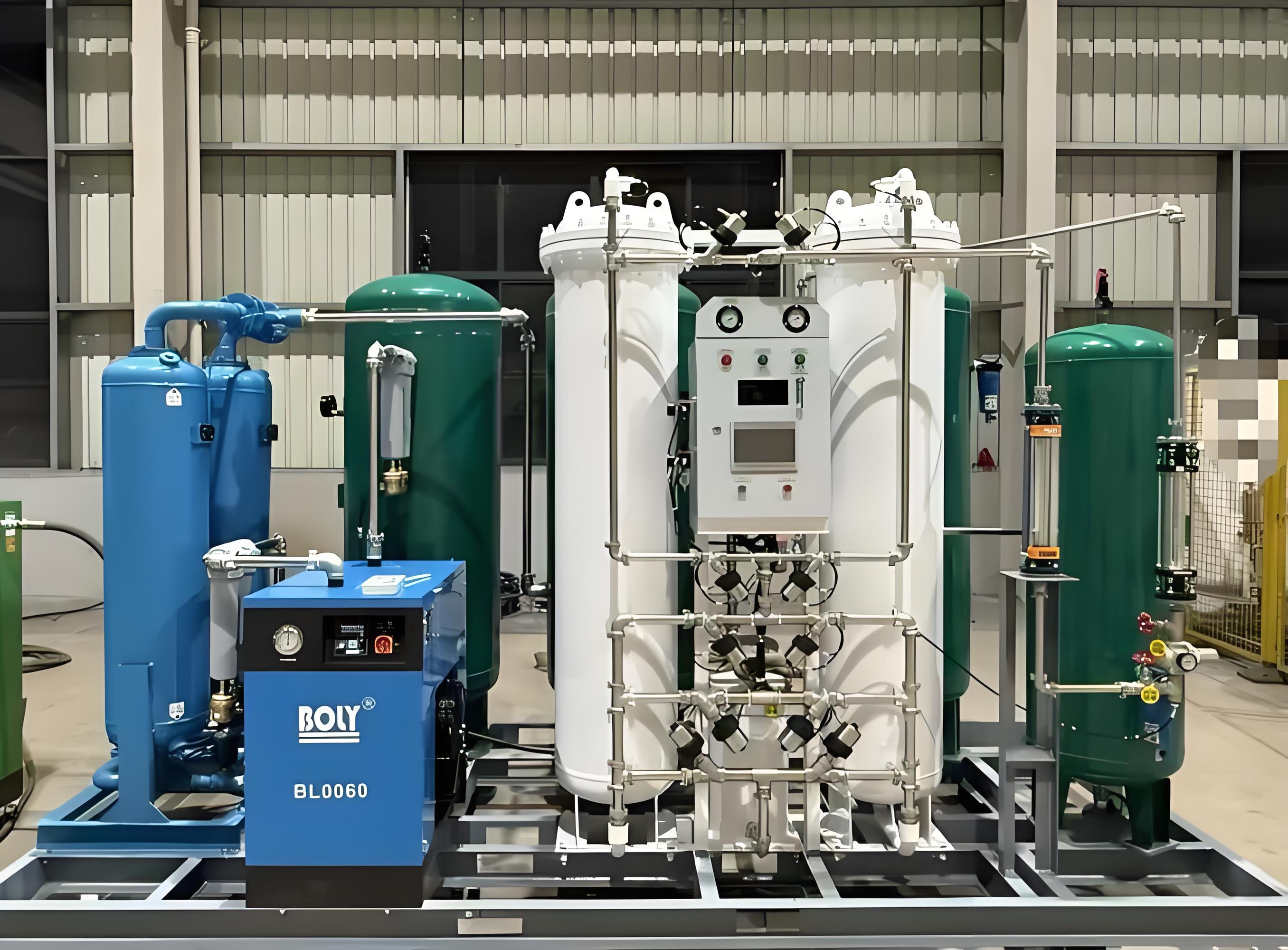

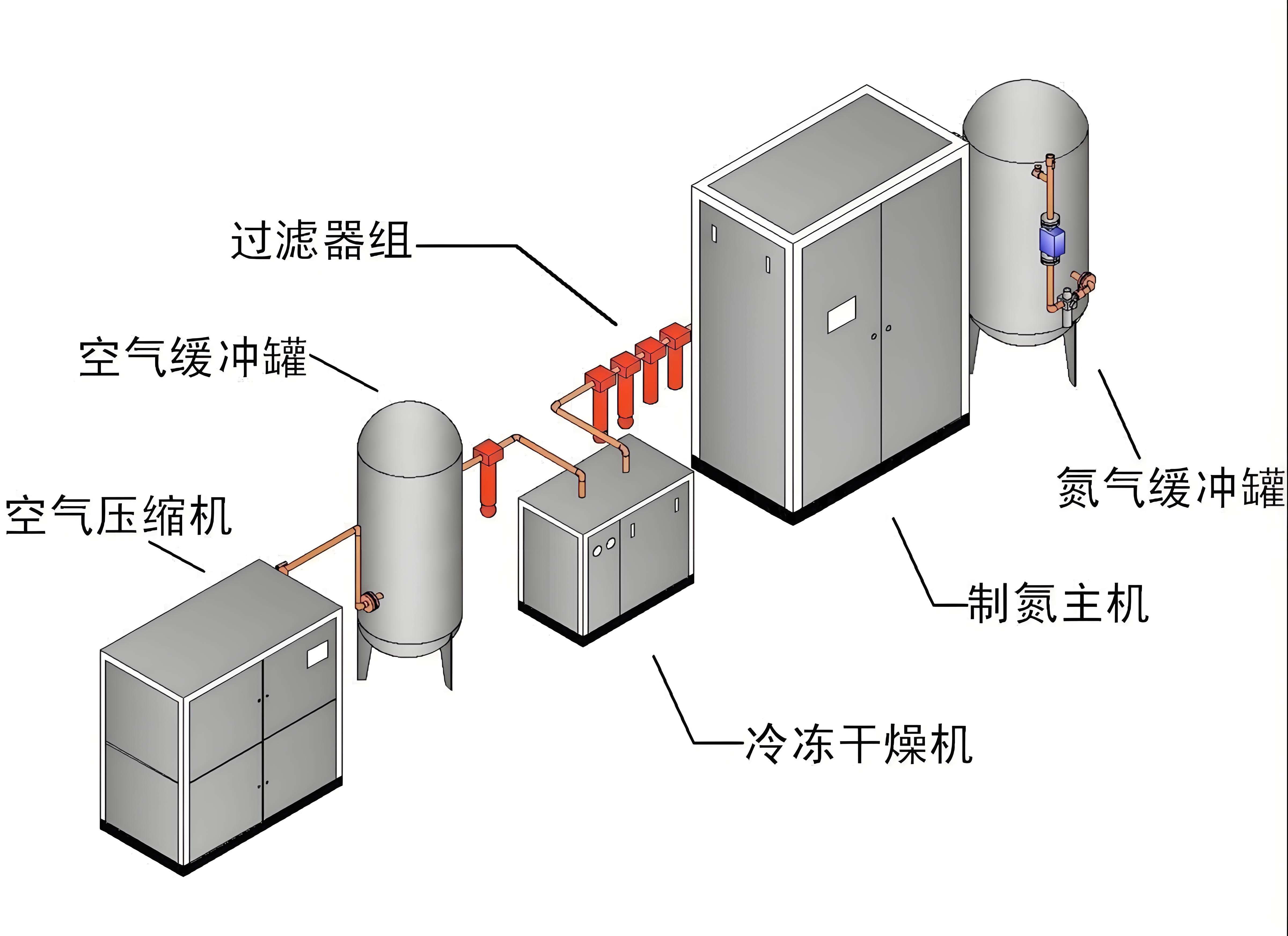

Modular Construction: All critical components (compressors, heat exchangers, distillation columns, control systems) are mounted on a steel skid frame, minimizing on-site installation time and complexity .

Compact Footprint: Space-efficient design reduces the required area by 30–50% compared to conventional systems, making them ideal for sites with limited space .

Plug-and-Play Integration: Piping, wiring, and instrumentation are pre-installed and tested at the factory, allowing for installation in 5–10 days with minimal site preparation .

Working Principles

Cryogenic Distillation:

Air is compressed, cooled, and purified to remove moisture and CO₂.

The air is then liquefied and separated in distillation columns based on boiling points (O₂ at -183°C, N₂ at -196°C).

Produces high-purity gases (O₂ ≥99.6%, N₂ ≥99.999%) for industrial and medical applications .

PSA Technology:

Uses molecular sieves to adsorb nitrogen or oxygen selectively under pressure, releasing the trapped gas when depressurized.

Lower purity (typically 90–99%) but energy-efficient and suitable for smaller-scale needs .

Membrane Separation:

Semi-permeable membranes allow oxygen or nitrogen to pass through based on permeability, producing lower-purity gases (70–95%) for less demanding applications .

Applications

Industrial: Steelmaking, chemical processing, glass manufacturing, and oil refining (e.g., oxygen for combustion, nitrogen for blanketing) .

Medical: High-purity oxygen (99.6–99.9%) compliant with medical standards, used in hospitals and remote healthcare facilities .

Food & Beverage: Nitrogen for packaging (to extend shelf life) and oxygen for water treatment .

Oil & Gas: Nitrogen for well stimulation, pipeline purging, and offshore platforms .

Aerospace: High-purity air for jet engine starting systems .

Advantages

Rapid Deployment: Factory testing ensures quick installation and commissioning, reducing downtime .

Cost Efficiency: Lower labor and material costs for on-site construction, as well as reduced maintenance due to pre-integrated components .

Mobility: Easily relocatable for temporary or remote applications, such as mining or disaster relief .

Energy Savings: Advanced designs (e.g., air-cooled systems, variable-speed drives) reduce power consumption by 10–20% compared to older models .

Safety: Built-in redundancy, pressure relief valves, and explosion-proof components meet international standards (e.g., CE, ISO) .

Disadvantages

Capacity Limitations: Typically smaller than traditional ASUs, with oxygen outputs ranging from 20–800 Nm³/h (cryogenic) or 5–500 Nm³/h (PSA) .

Initial Investment: Higher upfront costs compared to cylinder-based gas supply, though long-term savings often offset this .

Environmental Sensitivity: Cryogenic units require stable ambient temperatures, while PSA systems may be affected by humidity .

Performance Specifications

Purity:

Oxygen: 90–99.9% (PSA) or 99.6–99.9% (cryogenic for medical use) .

Nitrogen: 95–99.999% (PSA) or 99.9997% (cryogenic) .

Capacity: Customizable from small-scale (20 Nm³/h) to mid-range (2,000 Nm³/h) .

Energy Consumption:

Cryogenic: 0.65–1.85 kWh/m³ (oxygen) .

PSA: 0.2–0.5 kWh/m³ (nitrogen) .

Market Trends

Growth Drivers: Rising demand for industrial gases in emerging economies, expansion of the steel and healthcare sectors, and advancements in modular technology .

Market Size: The global ASU market is projected to grow at a CAGR of 8.2% from 2025 to 2033, with skid-mounted units capturing a significant share due to their flexibility .

Technological Innovations: Integration of AI-driven control systems to optimize energy efficiency and reduce downtime by 20%, as well as eco-friendly designs that cut emissions by 15% .

Installation & Maintenance

Site Requirements:****** ground, power supply, and minimal civil work (no extensive foundations needed) .

Maintenance:

Cryogenic units: Molecular sieves require replacement every 24 months, while PSA systems need regular sieve regeneration .

Factory-trained technicians ensure quick repairs and component replacements .

Conclusion

Skid-mounted ASUs offer a versatile, cost-effective solution for on-site gas production, combining the efficiency of traditional systems with the agility of modular design. They are particularly suited for industries requiring rapid deployment, scalability, and high-purity gases in remote or space-constrained locations. As technology advances, these units are expected to play a pivotal role in meeting the growing global demand for industrial gases while aligning with sustainability goals.
