Electrically Heated Water Bath Vaporizer

An electrically heated water bath vaporizer is an efficient heat exchange device that heats water in a water tank via electric heating elements, then uses the hot water to indirectly heat low-temperature liquid media (such as LNG, liquid oxygen, liquid nitrogen, LPG, etc.) to vaporize them into gas at room temperature or a set temperature. The following is a detailed introduction from aspects of technical principles, core features, application fields, technical parameters and industry trends:

I. Technical Principles and Structural Design

Working Principle

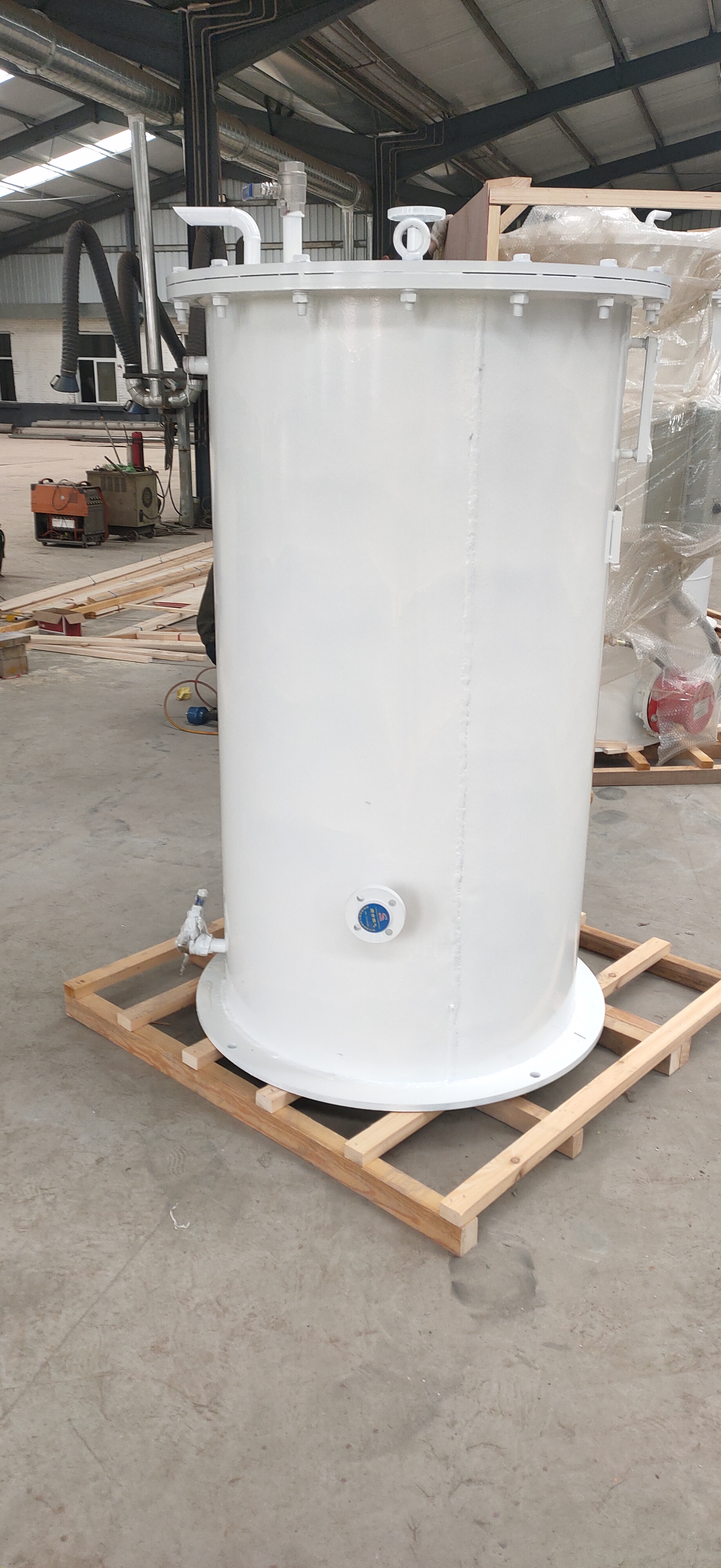

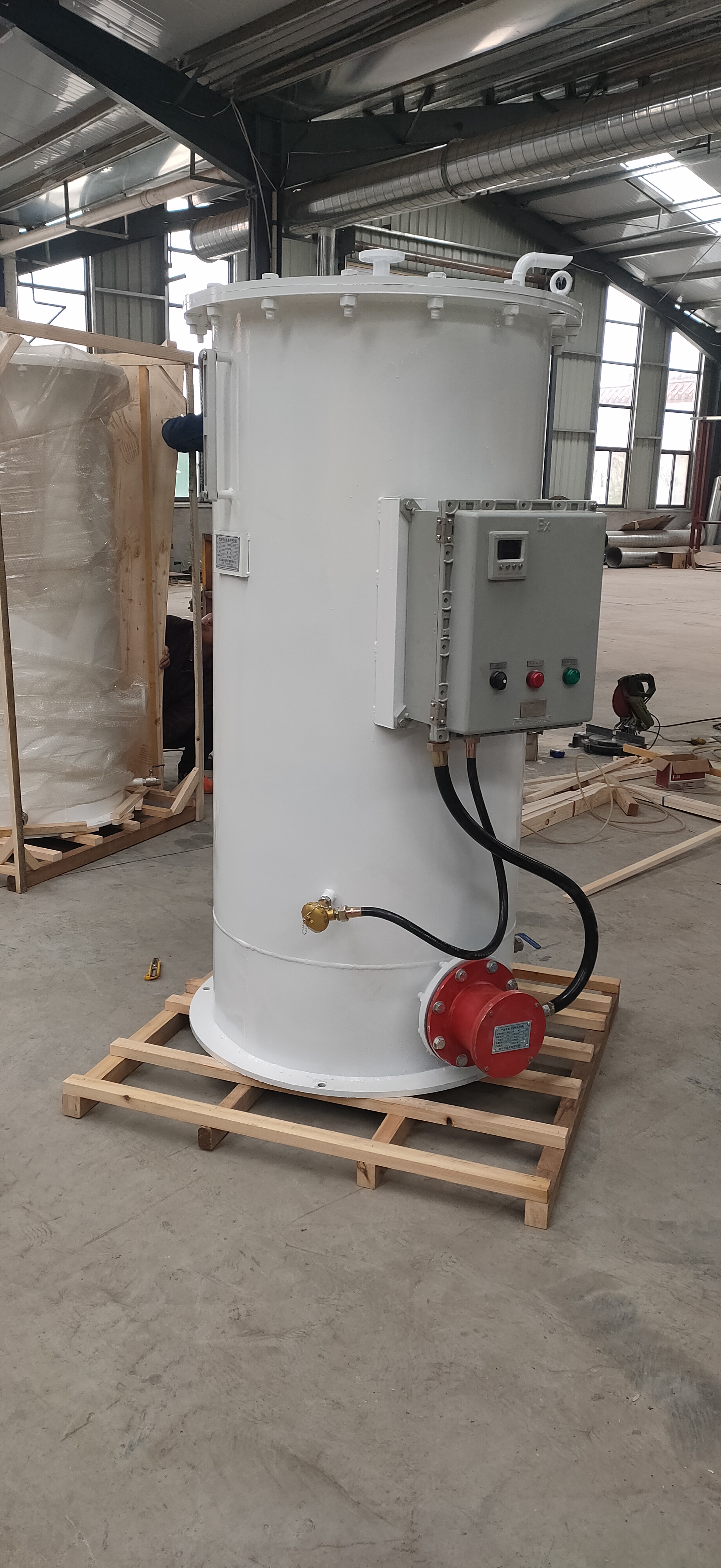

The device consists of a stainless steel water tank, a submerged heat exchange tube bundle, electric heating elements, and an intelligent control system. The electric heating elements heat the water in the tank to a set temperature (usually 60-70℃). When the low-temperature liquid medium passes through the heat exchange tube bundle, it absorbs heat from the hot water to achieve phase change vaporization. Temperature sensors monitor the water temperature and outlet gas temperature in real time, and the heating power is dynamically adjusted through a PLC or PID controller to ensure stable vaporization capacity and temperature accuracy controlled within ±2℃.

Structural Features

Efficient Heat Exchange: It adopts low-temperature dedicated stainless steel (e.g., 316L) heat exchange tubes, arranged in a matrix to increase the contact area. The heat exchange efficiency can reach over 95%, which is 30% higher than that of traditional vaporization equipment.

Compact Design: The cylindrical or rectangular shell optimizes space utilization. The vaporization capacity of a single unit ranges from 20 to 8000 Nm³/h, and multiple units can be connected in parallel to expand to a larger flow rate.

Safety Redundancy: Equipped with explosion-proof electric heating tubes (Ex d IIB T4 certification), dual liquid****** protection, pressure safety valves, emergency shut-off valves (ESD), etc., forming multiple safety barriers.

II. Core Performance Advantages

Stability and Reliability

Water bath heating avoids local overheating that may be caused by direct heating, ensuring uniform vaporization of the medium and no liquid residue in the outlet gas.

The device can operate stably in extreme environments of -30℃, suitable for alpine regions and scenarios with large day-night temperature differences.

Intelligent Control

Integrated with a PLC control system, it supports 4-20mA analog input/output and MODBUS communication protocol, which can be seamlessly integrated with DCS/PLC systems to realize remote monitoring, fault diagnosis and automatic alarm.

Some high-end models are equipped with IoT modules, supporting real-time viewing of operating parameters, energy consumption analysis and predictive maintenance through mobile APP or cloud platforms.

Energy Saving and Environmental Protection

It adopts frequency conversion control for staged startup of electric heating tubes, reducing the impact of starting current and optimizing energy consumption distribution.

The************ energy efficiency model has a thermal efficiency of over 95%, saving 15% energy annually compared with traditional equipment and reducing CO₂ emissions by approximately 186 tons (taking a 200kW device as an example).

Long Service Life and Low Maintenance

The stainless steel heat exchange tubes have strong corrosion resistance, with a normal service life of more than 10 years; the electric heating tubes adopt ceramic coating technology, with a replacement cycle of 18-24 months.

The water tank has a built-in water softening device to reduce scale formation, and the maintenance cost is 40% lower than that of traditional vaporizers.

III. Application Fields and Typical Cases

Energy Industry

LNG/CNG Vaporization: Used in LNG receiving stations and urban gas peak-shaving stations, a single device can have a vaporization capacity of up to 8000 Nm³/h, supporting rapid response to gas supply demands.

Hydrogen Energy Infrastructure: In liquid hydrogen storage and transportation demonstration projects, electrically heated water bath vaporizers can heat liquid hydrogen to room temperature to meet the hydrogen refueling needs of fuel cell vehicles.

Industrial Gas Field

Air Separation Unit Matching: Provides vaporization services for liquid oxygen, liquid nitrogen and liquid argon for iron and steel, chemical enterprises, supporting continuous and stable production.

Special Gas Supply: In semiconductor manufacturing, it precisely controls the gas temperature (±1℃) to ensure the purity of electronic specialty gases and process stability.

People's Livelihood and Commercial Scenarios

Centralized Gas Supply System: Provides LPG vaporization services for residential communities, catering hotels. A single device has a vaporization capacity of 20-500kg/h, supporting 24-hour uninterrupted gas supply.

Medical Gas Guarantee: The liquid oxygen station in hospitals converts liquid oxygen into medical oxygen through the vaporizer to meet the high reliability needs of operating rooms, ICUs and other scenarios.

IV. Key Technical Parameters

Item	Typical Parameter Range
Vaporization Capacity	20-8000 Nm³/h (per unit)
Working Pressure	1.6-40 MPa
Outlet Gas Temperature	Room temperature or customized (≥35℃)
Electric Heating Power	8-75 kW (per unit)
Power Supply Specification	380V/50Hz (three-phase five-wire system)
Explosion-Proof Grade	Ex d IIB T4 (ATEX/IECEx Certification)
Thermal Efficiency	≥95% (first-class energy efficiency model)
Control Accuracy	Temperature ±2℃, Pressure ±0.5% FS

V. Industry Trends and Market Dynamics

Technology Upgrade Direction

Intelligence: The application of IoT and AI algorithms realizes predictive maintenance, with the fault early warning accuracy increased to 90% and the operation and maintenance cost reduced by 15%.

Material Innovation: The penetration rate of titanium alloy heat exchange tubes in coastal high-corrosion environments has increased to 28.3%, extending the service life of the device.

Cryogenic Expansion: Special vaporizers for liquid hydrogen have been successfully developed, adopting high-vacuum multi-layer insulation technology to adapt to the extreme working condition of -253℃.

Market Growth Drivers

Clean Energy Replacement: The surging demand for clean energy such as LNG and hydrogen energy drives the expansion of the vaporization equipment market scale. In 2024, the sales volume of China's electrically heated water bath vaporizer market reached 3.86 billion yuan, and it is expected to grow to 4.28 billion yuan in 2025.

Policy Support: The national subsidy policy for the renewal of old equipment and energy-saving transformation is expected to release a replacement market space of over 1 billion yuan in the next 3 years.

VI. Brand and Selection Suggestions

Mainstream Brands

Domestic: Hebei Shunhe Gas Equipment Co., Ltd.

Imported: South Korea's TOA (TEV-VN Series), Germany's Linde

Selection Key Points

Medium Characteristics: Select the appropriate heat exchange tube material and pressure****** according to the medium type (e.g., LNG, liquid oxygen).

Vaporization Demand: Combine the gas consumption peak and valley and future expansion plans to select a single unit or multi-unit parallel scheme.

Environmental Conditions: Alpine regions need to be equipped with anti-freezing electric heating systems, and coastal regions are recommended to use corrosion-resistant titanium alloy materials.

Intelligence Demand: For large-scale projects, priority should be given to models that support DCS integration and IoT monitoring to improve management efficiency.

VII. Maintenance and Safety Precautions

Daily Maintenance

Regularly check the water******, water quality and scaling of electric heating tubes, and it is recommended to conduct a comprehensive cleaning every quarter.

Calibrate temperature sensors and pressure transmitters every year to ensure measurement accuracy.

Safe Operation

Do not open the heating chamber door when the device is in operation to avoid electric shock risks.

Regularly test the functions of safety valves and emergency shut-off valves to ensure rapid response in case of over-temperature and over-pressure.

Operators must hold certificates to work and be familiar with the equipment operation procedures and emergency plans.

With its efficient, stable and intelligent characteristics, the electrically heated water bath vaporizer has become a core equipment for gas supply in energy, chemical, medical and other fields. With the technological iteration and the growth of clean energy demand, its market prospect is broad, and at the same time, it puts forward higher requirements for the energy efficiency, intelligence and extreme environment resistance of the equipment. Choosing reliable brands and customized solutions can maximize the equipment performance and ensure production safety and economic benefits.
