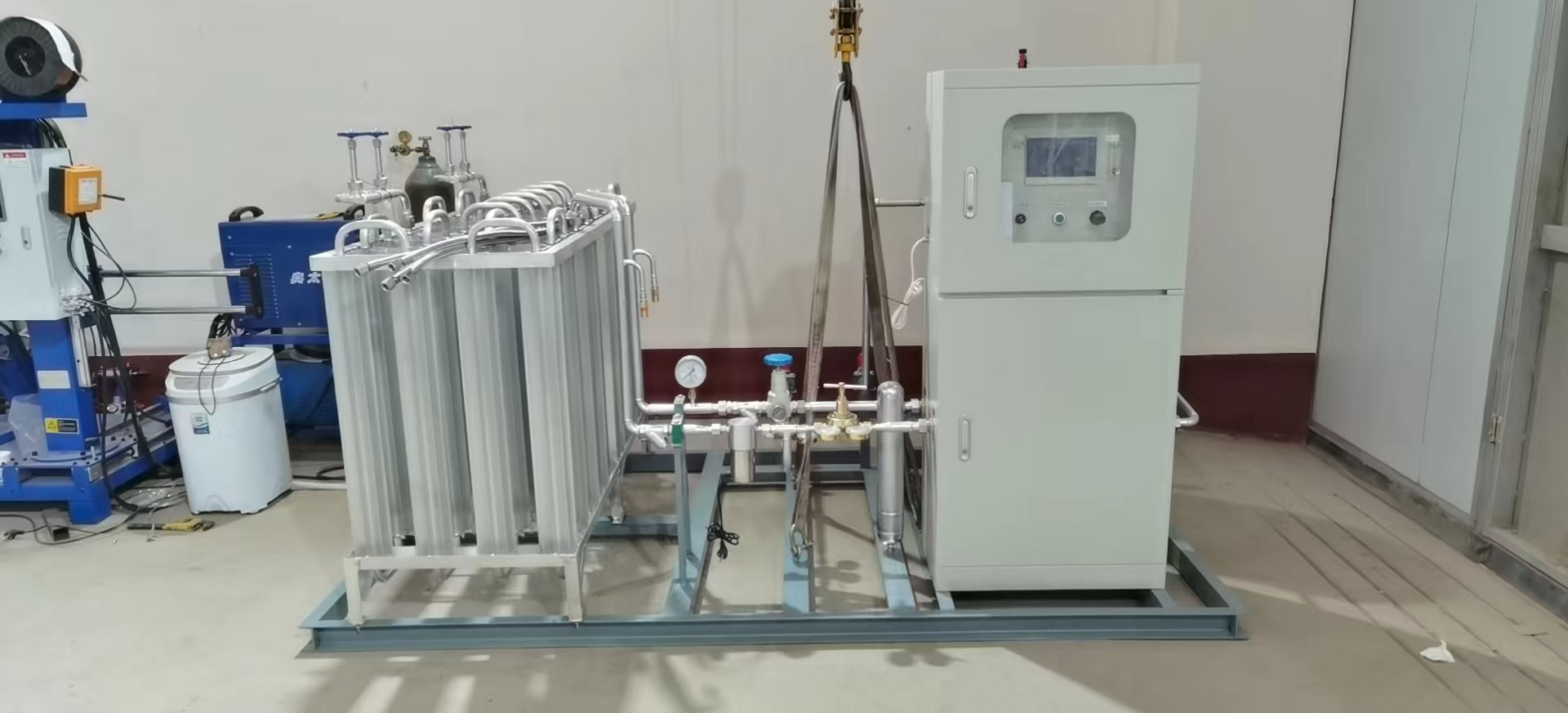

Blending gas mixing cabinet

1. Product Definition

A gas mixture proportioning cabinet is a specialized industrial equipment designed to accurately mix two or more types of gases in a preset ratio and continuously output the mixed gas. Its core value lies in ensuring the precision of gas concentration and the continuity of gas supply, making it suitable for process requirements across multiple industries.

2. Core Functions and Flow Characteristics

(1) Core Functions

Precise Proportioning: Through flowmeters, pressure sensors, and control systems, the gas mixing accuracy is controlled within the range of ±0.5% to ±2%, meeting the strict concentration requirements of critical processes;

Flexible Adjustment: Supports adjusting the mixing ratio via a touchscreen or remote system without disassembling the equipment, adapting to multi-scenario switching;

Safety Control: Equipped with built-in overpressure protection, leakage alarm, and emergency shutdown devices, it continuously monitors pressure, flow, and equipment status to reduce operational risks.

(2) Flow Characteristics (Key Parameter)

Definition and Units of Flow

Flow refers to the volume/mass of mixed gas stably output by the equipment per unit time, which is a core indicator for matching production scale. Common units include:

Volumetric Flow: Normal cubic meters per hour (Nm³/h, mainstream in industrial applications), liters per minute (L/min, used in small-flow laboratory scenarios);

Mass Flow: Kilograms per hour (kg/h, used in medical and specialty gas scenarios to avoid the impact of temperature and pressure changes).

Typical Flow Ranges and Scenario Adaptation

Application Scenario	Flow Range (Nm³/h)	Typical Application Cases
Laboratory/Pilot Testing	0.1~5	Material testing experiments, small-scale sample preparation
Pilot Production/Small-Scale Manufacturing	5~50	Small welding production lines, local heat treatment
Industrial Mass Production	50~200+	Large laser cutting workshops, continuous annealing furnaces

Core Technologies for Flow Control

Mass Flow Controller (MFC): Continuously monitors the input flow of a single gas with an accuracy of ±1% FS (Full Scale), avoiding deviations caused by temperature and pressure fluctuations;

Closed-Loop Flow Regulation: Combined with a PLC control system, when the flow deviates from the set value (e.g., decreased gas source pressure), the valve opening is automatically adjusted within 1 second to ensure flow fluctuation ≤ ±2%;

Segmented Flow Adaptation: Adopts a dual-flow module design (small-flow module: 0.1~10 Nm³/h, large-flow module: 10~200 Nm³/h) to balance the needs of "high precision at low flow" and "high productivity at high flow".

3. Main Application Fields

Manufacturing Industry: Metal welding (argon-carbon dioxide mixing for MIG welding), laser cutting (auxiliary gas), heat treatment (protective gas);

Medical Industry: Special models are used for medical gas mixing (e.g., oxygen-nitrogen proportioning) to provide a stable gas source for therapeutic scenarios;

Scientific Research and Testing: Provides standard mixed gases with fixed concentrations for laboratory analysis and material testing to ensure the accuracy of experimental data.

4. Core Advantages

High Efficiency: Enables 24/7 continuous and stable gas supply, reducing manual intervention and improving production efficiency;

Strong Stability: The closed-loop control system automatically compensates for temperature, pressure, and flow fluctuations, avoiding product quality issues caused by proportioning deviations;

Intelligence: Supports data storage, remote monitoring, and fault diagnosis, facilitating record tracing and problem troubleshooting.

5. Correlation Between Flow and Proportioning Accuracy

Flow and mixing accuracy must be matched synergistically to prevent overall performance degradation caused by deviations in a single parameter:

Low-Flow Scenarios (<5 Nm³/h): For extremely low flow rates (e.g., 0.1 Nm³/h), a high-precision mass flow controller (±0.5% FS) is required to prevent flow errors from amplifying concentration deviations (e.g., a 2% flow error may lead to a 5% concentration deviation);

High-Flow Scenarios (>50 Nm³/h): Pipeline design must be optimized (e.g., increasing main pipe diameter, reducing elbow resistance), and a pressure buffer tank should be installed to avoid proportion imbalance caused by instantaneous flow impact;

Multi-Gas Mixing (3 or more types): The flow range of each individual gas must match the mixing ratio (e.g., for a 1:10 mixing ratio and a total flow of 110 Nm³/h, flow modules of 10 Nm³/h and 100 Nm³/h should be selected respectively).

6. Key Bases for Model Selection

Total Flow Calculation: Total flow requirement = Rated flow of a single gas-consuming device × Number of simultaneously operating devices × Redundancy factor (1.1~1.2, to cope with peak gas consumption);

Example: For 3 laser cutting machines (20 Nm³/h per unit) operating simultaneously, the total requirement = 20×3×1.2 = 72 Nm³/h, so a model with a flow rate of 80 Nm³/h or above should be selected;

Flow Adjustment Margin: Avoid operating at full load; reserve 10%~20% adjustment space to extend equipment service life (e.g., for a required flow of 72 Nm³/h, a 75 Nm³/h model is not recommended);

Adaptation to Gas Properties: For viscous or condensable gases (e.g., some organic gases), flow modules with heating and heat preservation functions should be selected to avoid flow loss caused by changes in gas state.
