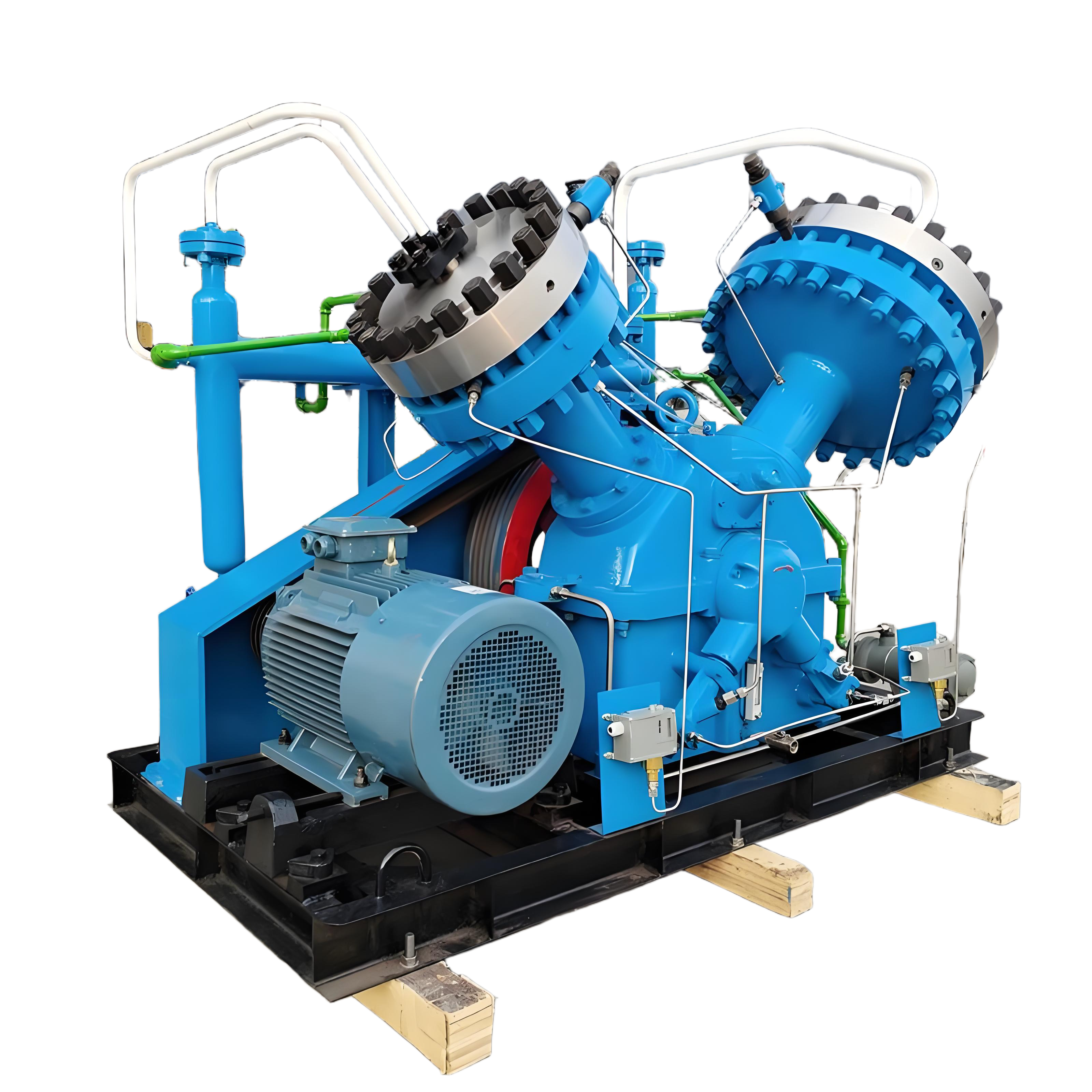

Gas Diaphragm Compressor: The Preferred Equipment for High-End Gas Compression

A gas diaphragm compressor (i.e., diaphragm compressor) is a positive-displacement device that achieves gas compression through the reciprocating motion of a diaphragm. Its core feature is the complete isolation between gas and hydraulic oil, ensuring oil-free contamination, high sealing performance, and high purity during the compression process. The following sections cover its technical principle, product characteristics, application fields, technical parameters, and market development:

I. Technical Principle and Structure

Working Mechanism

A diaphragm compressor uses a hydraulic system to drive a metal or composite material diaphragm (e.g., stainless steel, polytetrafluoroethylene/PTFE) for reciprocating motion inside the cylinder. When the diaphragm moves toward the hydraulic chamber, the volume of the gas chamber increases, drawing in gas; conversely, when the diaphragm moves toward the gas chamber, the gas is compressed and discharged. Throughout the process, the gas and hydraulic oil are completely isolated by the diaphragm to avoid contamination.

Key Components

Diaphragm: Separates the gas chamber from the hydraulic chamber, withstands high pressure differentials, and transmits power. The material must balance strength and flexibility.

Hydraulic System: Maintains stable oil pressure via an oil pump, compensates for oil leakage, and ensures the diaphragm fits the cylinder head. Common components include a compensation oil pump and pressure regulating valve.

Drive Unit: Driven by an electric motor or engine through a crank-connecting rod mechanism to realize high-frequency reciprocating motion of the diaphragm.

II. Core Product Characteristics

High Purity and Oil-Free Compression

Gas***** comes into contact with the diaphragm and cylinder inner wall, with no lubricating oil involved. The purity of compressed gas can reach 99.999%, making it suitable for industries sensitive to contamination, such as the food, pharmaceutical, and electronic semiconductor industries.

High Sealing Performance and Safety

The diaphragm and static sealing design prevent gas leakage, making it especially suitable for handling flammable and explosive gases (e.g., hydrogen), toxic gases (e.g., chlorine), or radioactive gases. Some models are equipped with explosion-proof motors, pressure safety valves, and leakage monitoring systems, complying with ATEX and other international safety standards.

Wide Pressure Range and High Compression Ratio

The discharge pressure ranges from 0.1 MPa to 300 MPa, with a compression ratio of up to 1:100. For example, China's****** 320 MPa ultra-high pressure diaphragm compressor has achieved a technological breakthrough, meeting the ultra-high pressure needs of the hydrogen energy and military industries.

Low Maintenance and Long Service Life

There are few moving parts (only the diaphragm and hydraulic piston), resulting in low wear and a long maintenance cycle. The service life of metal diaphragms can reach 10,000–40,000 hours, and some models extend this period by optimizing stress distribution.

Modularity and Intelligence

Customized design is supported; single-stage or two-stage compression, as well as air-cooled or water-cooled solutions, can be selected based on working conditions. Modern models integrate PLC control systems to realize remote monitoring, fault early warning, and energy efficiency optimization.

III. Application Fields

Energy and Environmental Protection

Hydrogen compression (hydrogen refueling stations, fuel cells)

Recovery of renewable energy such as biogas and landfill gas

Liquefaction and transportation of natural gas

Industrial Manufacturing

Petrochemical industry: Handling corrosive gases such as ethylene, propylene, and sulfur hexafluoride

Electronic semiconductor industry: High-purity nitrogen and argon for chip manufacturing

Metallurgy and glass industry: Oxygen-aided combustion and nitrogen protection

Medical and Food Industries

Aseptic compression of medical oxygen and nitrogen

Food-grade carbon dioxide and nitrogen for beverage carbonation and packaging preservation

Scientific Research and Special Scenarios

Nuclear industry: Handling of radioactive gases

Aerospace industry: Preparation of rocket fuels (liquid oxygen, liquid hydrogen)

Laboratories: High-precision compression of rare gases (helium, neon)

IV. Technical Parameters and Models

Pressure Range: 0.1–300 MPa (up to 320 MPa for ultra-high pressure models)

Flow Rate Range: 0.1–1000 m³/h

Compression Stages: Single-stage or two-stage; some models adopt V-type or vertical structures to optimize space

Driving Power: 1–500 kW, suitable for different scale requirements

Cooling Method: Air-cooled or water-cooled to ensure stable operation under high-temperature conditions

V. Market Development and Trends

Technological Innovation

Ultra-High Pressure Breakthrough: Domestic enterprises have achieved mass production of 320 MPa diaphragm compressors, breaking international monopolies.

Material Upgrading: New composite materials (e.g., metal-polymer composite diaphragms) improve corrosion resistance and service life.

Intelligent Control: Integration of Internet of Things (IoT) technology to support remote monitoring, predictive maintenance, and energy consumption optimization.

Policies and Industry Demand

Hydrogen Energy Industry: The global "carbon neutrality" goal promotes the construction of hydrogen refueling stations, making diaphragm compressors a core device for hydrogen compression.

Environmental Protection Regulations: Oil-free compression technology meets strict emission requirements, replacing traditional piston compressors in the chemical, electronic, and other industries.

VI. Maintenance and Operation Specifications

Maintenance Key Points

Regularly check the integrity of the diaphragm to prevent fatigue damage; the replacement cycle is usually 1–3 years, depending on specific working conditions.

Monitor the quality of hydraulic oil to ensure unobstructed oil circuits; clean the cooling system regularly for water-cooled models.

Safe Operation

Before startup, check the oil pressure, cooling system, and sealing of gas pipelines; strictly follow the pressure matching principle (oil pressure is usually 1.1 times the discharge pressure).

When handling hazardous gases, equip with personal protective equipment (e.g., respirators) and ensure good ventilation.

VII. Typical Application Cases

Hydrogen Refueling Stations: The GV-series diaphragm compressors by provide 35–70 MPa high-pressure hydrogen filling for hydrogen fuel cell vehicles, supporting the large-scale operation of hydrogen refueling stations.

Semiconductor Manufacturing: The multi-stage diaphragm compressors by PDC Machines supply nitrogen with 99.999% purity to chip factories, ensuring a clean production environment.

Nuclear Industry: Diaphragm compressors are used for the circulation of sulfur hexafluoride gas during uranium enrichment, ensuring sealing performance and safety.

Conclusion

With its oil-free, high-purity, and high-sealing characteristics, the gas diaphragm compressor has become the preferred equipment for high-end industrial gas compression. As emerging industries such as hydrogen energy and semiconductors develop, market demand continues to grow. Meanwhile, technological innovations (e.g., ultra-high pressure, intelligence) further consolidate its core position in the gas processing field. In the future, under the "dual carbon" goal, this equipment will provide key support for green energy transition and industrial upgrading.
