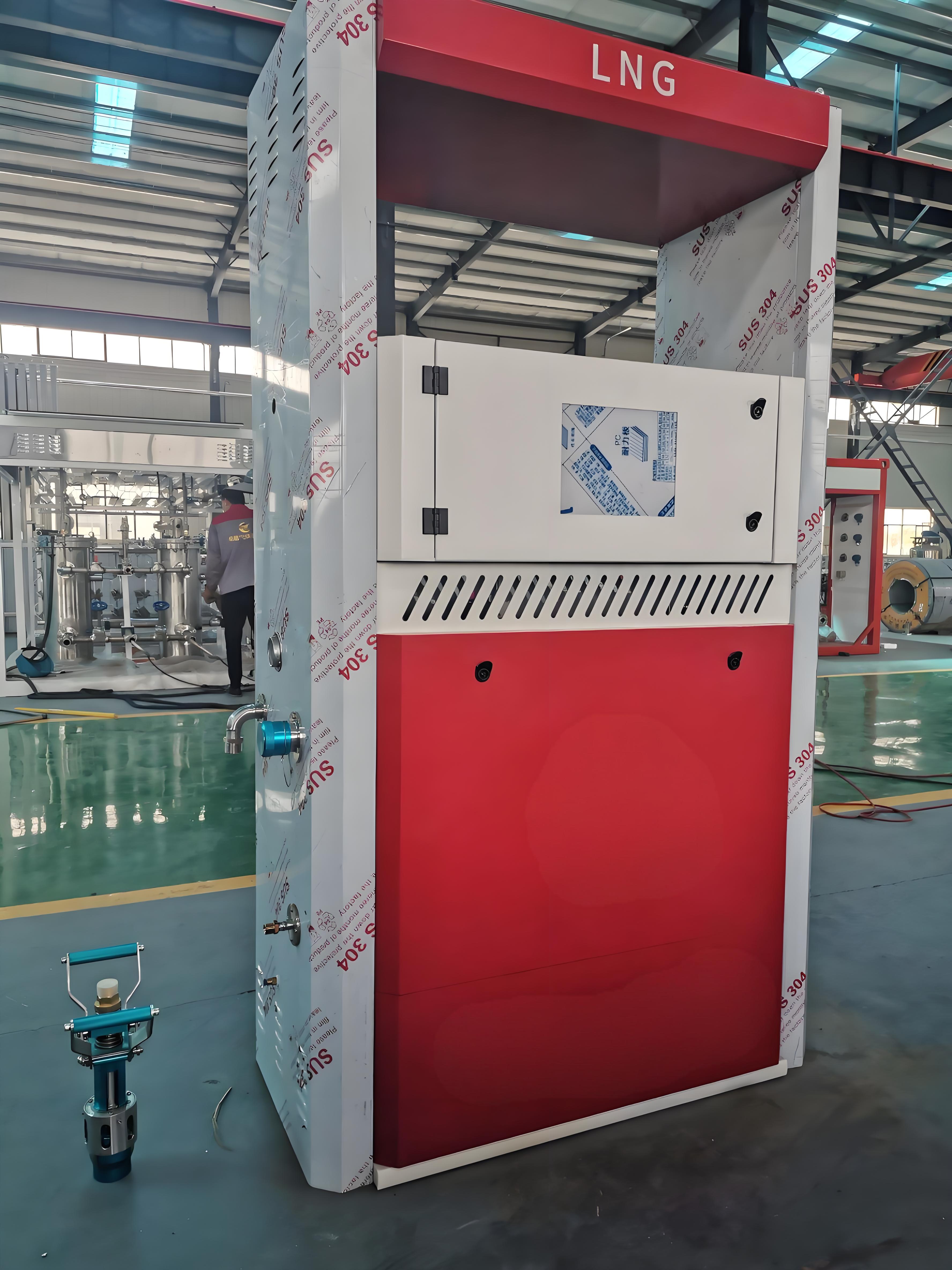

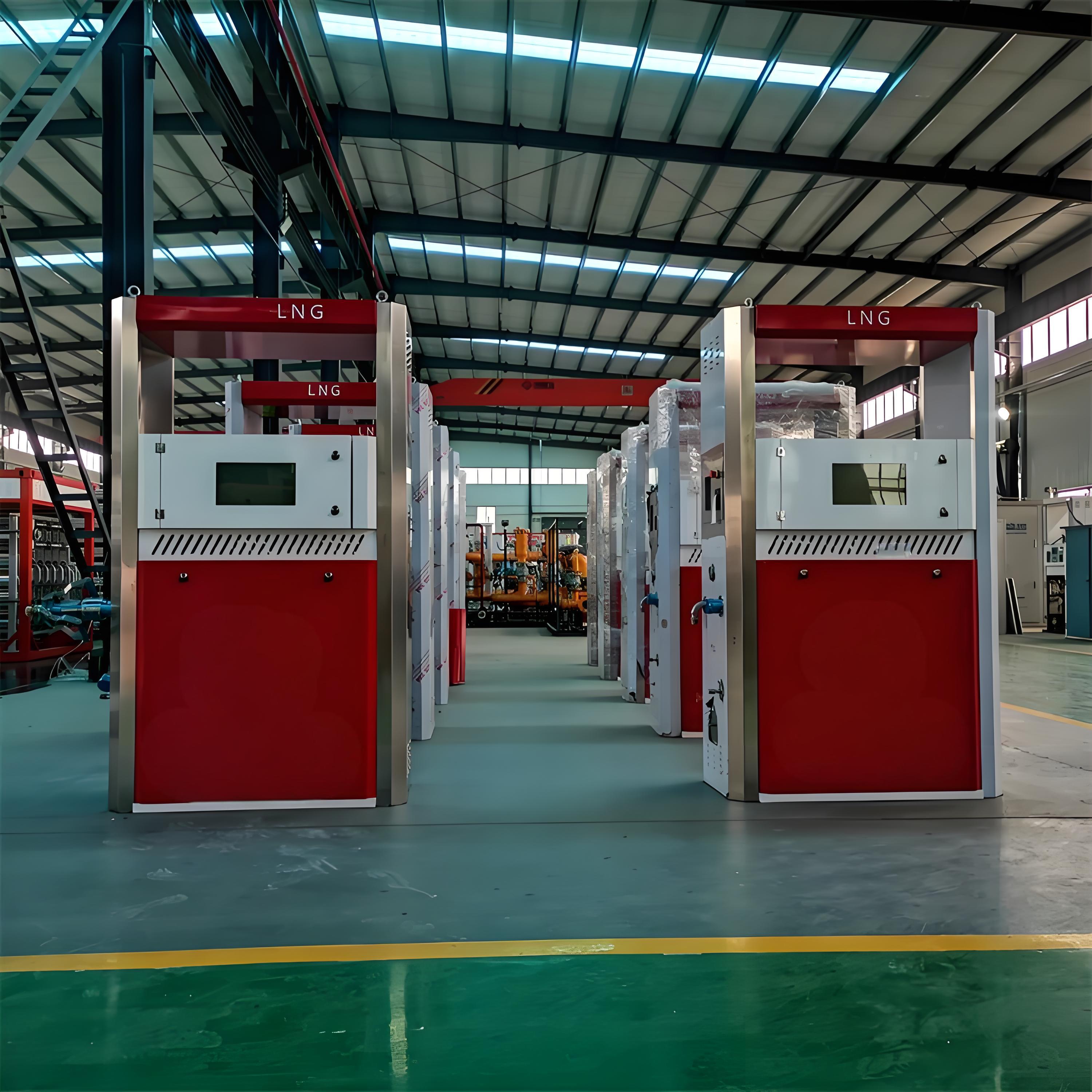

LNGDispenser

LNG dispensers are high-precision devices specifically designed for refueling Liquefied Natural Gas (LNG), widely used in vehicle, marine, and industrial applications. The following is a comprehensive introduction covering technical parameters, structural principles, safety design, intelligent functions, and market applications:

1. Core Technical Parameters

Mainstream models such as Henan Zhengrongheng ZRHJYJ-80Z and products from Sichuan Tiancheng Qingjie Energy feature the following key indicators:

Flow Rate Range: 3-80 kg/min (single nozzle), with some high-end models reaching up to 90 kg/min;

Measurement Accuracy: ±1.0%-1.5%, repeatability error ≤0.5%, using imported mass flow meters to ensure precision;

Operating Pressure: 1.6 MPa (standard), with some models supporting 2.5 MPa high-pressure refueling for special needs;

Environmental Adaptability: Operable in a wide temperature range of -30℃~55℃ and humidity ≤90% RH, suitable for extreme climate conditions;

Explosion-Proof Grade: Overall explosion-proof rating ExdeibIIBT4 Gb, complying with international ATEX and PED certification standards.

2. Structure and Working Principle

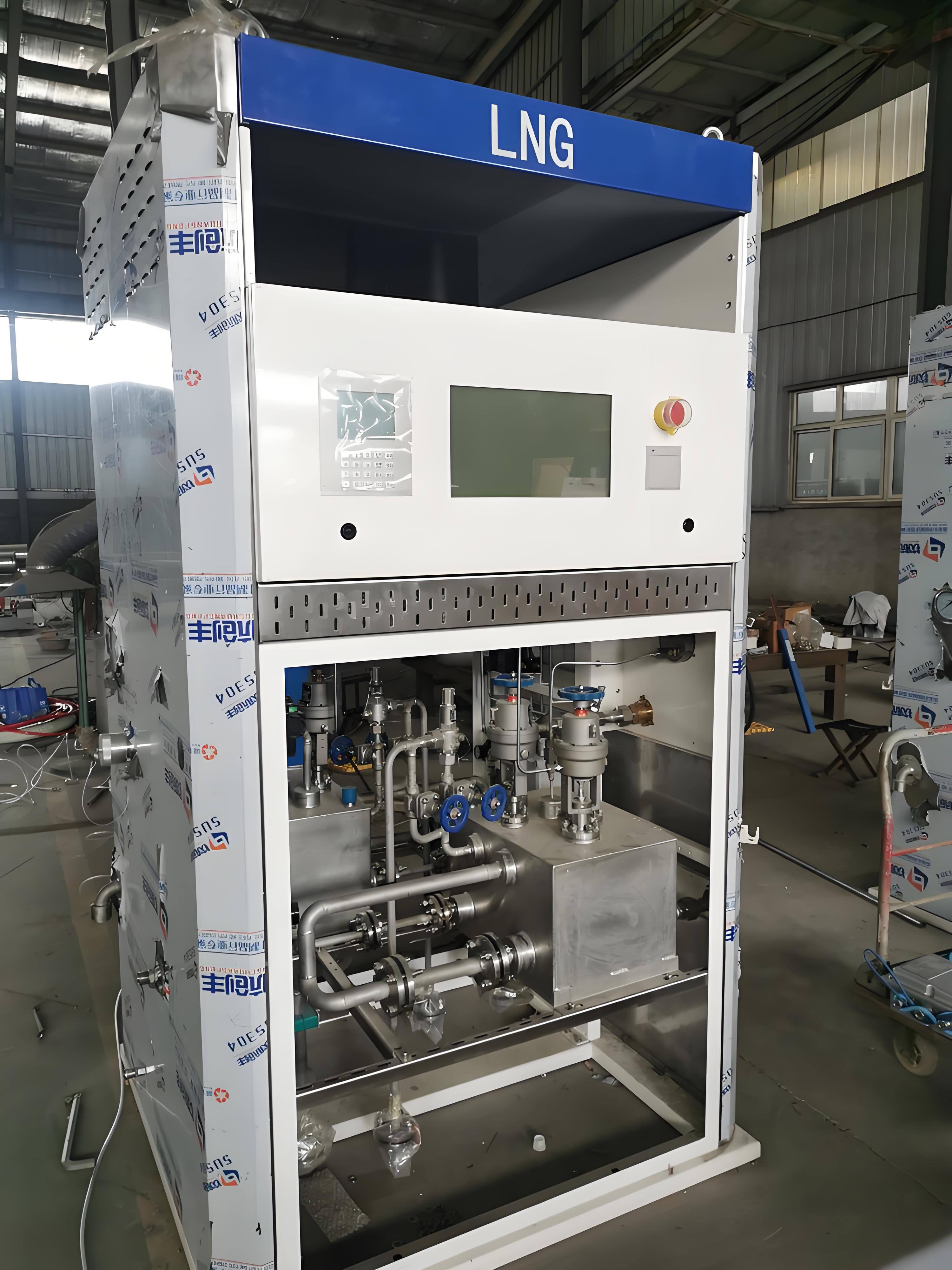

(1) Core Components

Low-Temperature Pipeline System: Adopts vacuum-insulated stainless steel hoses (DN25 filling hose/DN15 gas return hose), with protective devices at both ends to extend service life;

Measurement Module: Integrates mass flow meter and temperature sensor to real-time monitor medium density and status, supporting dual-unit display (kg/Nm³);

Control System: Equipped with an industrial-grade microprocessor, supporting one-click pre-cooling, quantitative/non-quantitative refueling, and featuring power-off data protection;

Safety Components:

Safety valve (actuating at 1.6 MPa) and breakaway coupling (withstanding ≥4000 N tension) to prevent overpressure and accidental breakage;

Gas leakage detection and ESD (Emergency Shutdown) system, with response time ≤10 seconds;

Human-Machine Interface (HMI): Double-sided high-brightness LCD screen displaying refueling volume, unit price, and total amount, supporting IC card settlement, receipt printing, and password permission management.

(2) Working Process

Pre-Cooling Stage: The system automatically detects pipeline temperature and reduces gasification rate through small-cycle pre-cooling, shortening pre-cooling time by 30% compared to traditional models;

Refueling Process: After being pressurized by the low-temperature pump, LNG flows through the mass flow meter, pneumatic valve, and breakaway coupling to the filling nozzle. BOG (Boiled Off Gas) in the vehicle-mounted tank is returned to the storage tank via the gas return pipeline;

Termination Control: When the preset volume is reached or a full-tank signal is detected, the system automatically closes the valve to avoid overfilling.

3. Safety Design and Certifications

Multiple Protection Mechanisms:

100% of pipeline welds undergo RT/PT non-destructive testing; the entire machine passes liquid nitrogen cold shock test (-196℃) and 1.5x pressure strength test;

A filter device is installed at the liquid return port to prevent impurity contamination; gas discharged from the safety valve must be treated by an EAG (Evaporated Gas) heater before venting;

International Certifications:

Domestically compliant with GB/T41319-2022 standard, incorporating new requirements for 2.5 MPa pressure class and emergency shutdown response;

Export models have obtained ATEX (EU Explosion Protection Directive), MID (Measuring Instruments Directive), and PED (Pressure Equipment Directive) certifications.

4. Intelligent and Digital Upgrades

IoT Integration:

Reserved RS485/Modbus interfaces, supporting remote monitoring and data upload to the energy management platform for real-time tracking of parameters such as refueling volume, pressure, and temperature;

Some models integrate GPS positioning, suitable for dispatch management of mobile refueling vehicles;

User-Friendly Operation:

Supports WeChat/Alipay QR code payment and IC card prepaid payment, compatible with vehicle networking data interaction (e.g., reading remaining volume in the vehicle-mounted tank);

Intelligent voice navigation and animated guidance interface to reduce operation errors;

Energy Efficiency Optimization:

Dynamically adjusts pump frequency via algorithms to reduce BOG emissions, lowering energy consumption by 15% compared to traditional models;

The fault early warning system can identify issues such as low-temperature valve leakage and flow meter abnormalities in advance, reducing downtime.

5. Market Applications and Typical Cases

(1) Application Scenarios

Land Transportation:

Refueling for heavy-duty trucks, buses, and long-distance coaches; single-nozzle refueling time ≤5 minutes, with a driving range exceeding 1000 km;

In 2024, the domestic ownership of LNG heavy-duty trucks exceeded 800,000 units, driving the market size of gas filling station equipment to 14.26 billion yuan;

Maritime Transportation:

Inland river marine dispensers support pontoon-type or shore-based installation, adapting to 500-5000 DWT (Deadweight Tonnage) ships with a refueling pressure of 1.6-2.5 MPa;

International projects such as the 18,600 m³ LNG bunkering vessel built by Hudong-Zhonghua, equipped with a dual-fuel main engine and intelligent control system, reducing methane emissions by 60%;

Industrial Sector:

Dispensers matched with small and medium-sized storage tanks (50-200 m³) for on-site gas supply in factories and gas peak shaving, supporting manual/automatic switching modes.

(2) Industry Trends

Integrated Design: Modular skid-mounted equipment shortens the station construction cycle to 45 days, reducing costs by 20% compared to traditional solutions;

Overseas Expansion: The export volume of Chinese dispensers increases by 25% annually, reaching 980 million yuan in 2024, mainly sold to Southeast Asia, the Middle East, and Eastern Europe;

Energy Integration: "Oil-Gas-Electricity-Hydrogen" comprehensive energy stations have become a new trend; LNG dispensers share data platforms with charging piles and hydrogen refueling machines to improve station utilization.

6. Maintenance and Servicing Guide

Daily Inspection:

Weekly inspection of hose leakage (using a combustible gas detector) and pressure gauge accuracy (compared with the automatic control system);

Replace inner and outer gaskets of the filling gun after 2000 refueling cycles; conduct comprehensive valve core maintenance after 10,000 refueling cycles;

Regular Maintenance:

Clean the filter element quarterly (paper filter elements are recommended to be replaced every 2-3 months); check the wear of low-temperature valve seals;

Send the submerged pump back to the factory for inspection after 4000 hours of operation, replace lubricating grease, and calibrate impeller clearance;

Annual Maintenance:

Conduct system air tightness test (maintain 1.1x operating pressure for 24 hours); calibrate the safety valve (error ≤±5%);

Update the control system software to ensure compatibility with the latest communication protocols (e.g., T/CATSI 05001-2024).
